Basic Info.
Model NO.
TS-YX4′x8′-1600T
Pressing Layer
Single Layer
Work Mode
Period
Controlling Mode
PLC
Automatic Grade
Semiautomatic
Certification
CE, ISO
After-sales Service
Available
Press Time
12s
Color
Grey
Transport Package
Seaworthy Package
Specification
cutomerized
Trademark
TRILLION SHINE
Origin
China
HS Code
847930
Production Capacity
115 Sets/Year
Product Description
Application:

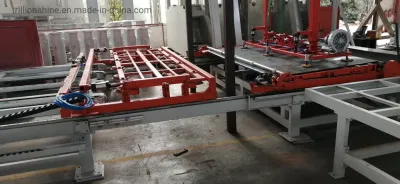

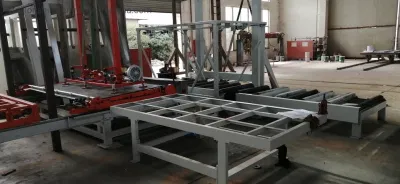

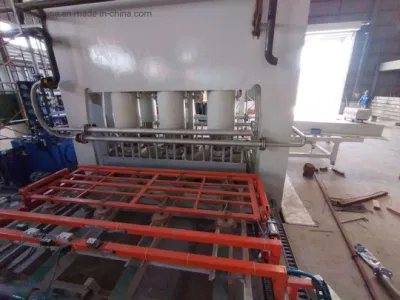

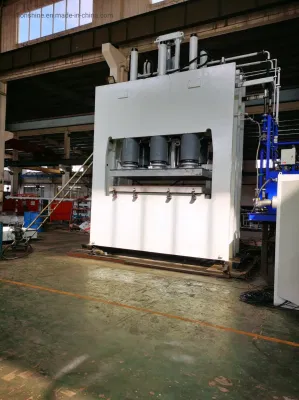

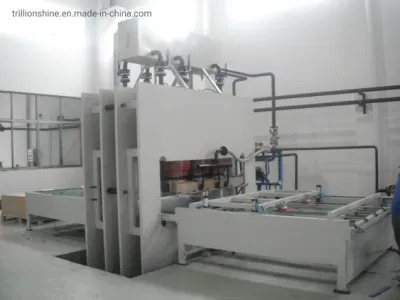

The fast short cycle laminating hot press line is for double-sided lamination of MDF-boards and particleboard with melamine resin impregnated papers n a short cycle process.
Features:
It is suitable for fast laminating. quickly opening, closing, quickly pressurizing and short auxiliary time.
Stable high-speed operation, Max capacity: 120 sheets /hour
Only need one person for operating the full production line.
Flow chart:
According to customers' requirement.
Parameter:
| Board size (feet/mm) | 4'x6' | 4'x8' | 4'x9' | 6'x8' | 6'x9' | 6'x12' | 7'x9' |
| 1220x180 | 1220x2440 | 1220x2750 | 1830x2440 | 1830x2750 | 1830x3660 | 2100x2750 | |
| Hot platen size (mm) | 1400x2000 | 1400x2600 | 1400x2900 | 1950x2660 | 1950x2920 | 2000x4000 | 2300x2900 |
| Heat consumption (kcal/h) | 20x104 | 20x104 | 20x104 | 30x104 | 30x104 | 40x104 | 40x104 |
The melamine laminate's surface finish is determined by the caul plate, and can be matt, satin,
glossy,suede, stone grain, wood grain and other exotic finishes.
| Guidance of choosing pressure | |||||||
| Specfic pressure level | Matt/glossy | Suede | Normal Wood grain | Normal Engraving | Deep Engraving | Normal flooring | Deep flooring |
| 30kg/cm2 | √ | ||||||
| 40kg/cm2 | √ | √ | √ | ||||
| 50kg/cm2 | √ | √ | √ | √ | |||
| 60kg/cm2 | √ | √ | √ | √ | √ | ||
| 70kg/cm2 | √ | √ | √ | √ | √ | √ | |
| 80kg/cm2 | √ | √ | √ | √ | √ | √ | √ |
What services to offer:
1. Provide customerization.
2. One year warranty for the machine. Liftetime after-sales service and technical support.
3. Professional team for guiding installation& commissioning.
