Product Description

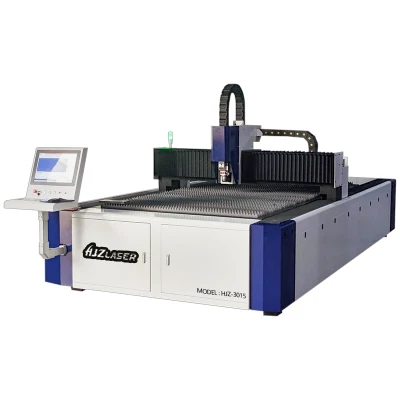

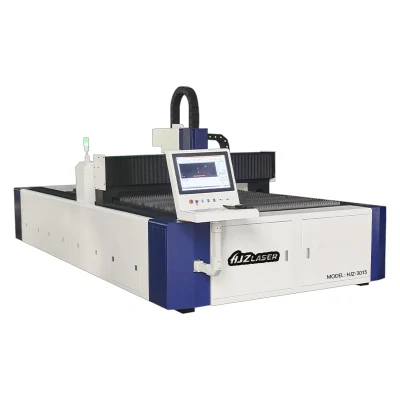

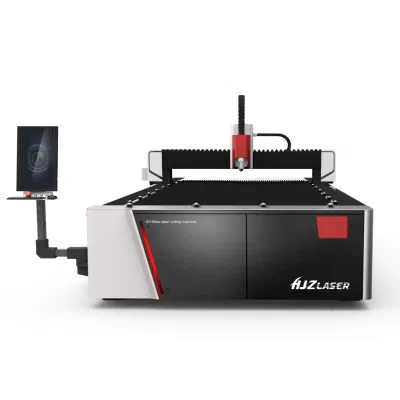

High power 1500W 2000W 3000W 6KW 12KW fast professional iron sheet fiber laser metal cutter
Standard Configuration of Fiber laser cutting machine:
- German IPG Fiber laser source / China Max laser source ;
- Japan YASKAWA Servo motor with double ball screw driving sytem
- Imported World Famous "Lasermech" laser head with auto focusing
- Automatic Lubrication System for Mechanic
- Taiwan "Hiwin" Ball Screw Rod
- Laser Moving Control Card
- Red Light Pointer
- US imported Focus Lens
- Japan SMC Gas system
- Imported Germany Reducer
Technical Data :
1 | Machine Name | Metal Plate and tube Fiber laser cutting machine |
2 | Model | HJZ- 1000-3015 |
3 | Laser machine cutting area | 3000x1500mm |
4 | Fiber Laser Power | 1000/1500/3000/6000/8000/12000/25000W |
5 | Laser wave length | 1064nm |
6 | Transmission system | Gear + rails (we have standard brand,we can also produce as your requirements) |
7 | X.Y axis location accuracy | ±0.01mm |
8 | X.Y axis repeat location accuracy | ±0.01mm |
9 | X.Y axis max moving speed | 30m/min |
10 | Max cutting speed | 1--30m/min(it will according to metal material and laser power) |
11 | Cutting thickness | Detailed in the following cutting thickness |
12 | Application Material | Metal sheet Iron/CS/SS/Aluminum/Copper and all kinds metal |
13 | Advantages | >Excellent beam quality |
14 | Gross weight | 4000KG |
15 | Net weight | 3800KG |
16 | Machine size | 4800*2600*1860mm |
Warranty & Service
Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.
Guarantee:
We offer free Two-year warranty and durable maintenance&repair support for the purchased machines. Within the warranty time, we are responsible for the cost-free repair once the equipment fail or the machines break down(except human factor and force majeure causes) and we shall offer the replacement parts for free(except consumed parts). During the non-warranty time, we just charge the flat cost based on actual cost of repair.
