Basic Info.
Model NO.
80T/2000mm
CNC or Not
Yes
Function
Bending Metal Plate
Power
7.5kw
Automatic Level
Fully Automatic
Dimension
4200*1600*1300mm
Slider Stroke (mm)
200 mm
Throat Depth (mm)
360 mm
Length of Working Table (mm)
3200
Width of Working Table (mm)
4000 mm
Power Supply
220V 3pH 50Hz
Motor Power (Kw)
11 Kw
Core Components
Motor, Pump, PLC
After-Sales Service Provided
Online Support
Transport Package
3 Layers
Specification
9000
Trademark
DXTECH
Origin
Jinan, Shandong Prvovince, China
HS Code
8461500090
Production Capacity
200 Sets/Month
Packaging & Delivery
Package Size
460.00cm * 180.00cm * 330.00cm
Package Gross Weight
2500.000kg
Product Description
Features
1. Fully Annealed Frame:
DXTECH steel frames undergo annealing at over 600 to relieve stress and they are built to last years of heavy use without distortion.
2. Optimized Base Frame:
-Very stiff and stable base frame
-Deformation simulation made by CAE
-Stress points analysis
Usage of high-tech boring machines for extreme precision parts.
3. Quick Clamping Device:
Equipped with a quick clamping device for the upper mold, which is convenient for changing the mold.
4. Safety: Lazersafe system, Back safety barriers, Machines with EC certification
Technical Parameters
| No. | Item | Parameter |
| 1 | Power supply | 220V 3PH 50HZ |
| 2 | Power supply stability | ±10% |
| 3 | Install the laser ambient temperature | 5~40 ºC |
| 4 | humidity | 20-85% |
| 5 | Electrical control cabinet | IP40 |
| 6 | Control box | IP45 |
| 7 | Number of control axes | 4+1(Y1,Y2,X,R+V) |
| 8 | V-axis form | Mechanical compensation |
| 9 | Nominal force | 800KN |
| 10 | Table length | 2000mm |
| 11 | Distance between columns | 1600mm |
| 12 | throat depth | 360mm |
| 13 | Slider stroke | 200mm |
| 14 | Maximum opening height between worktop and slider | 460mm |
| 15 | Oil pump | 16F |
| 16 | Main motor power | 7.5KW |
| 17 | Machine outline dimension | 4200*1600*1300mm |
| 18 | Travel Y-axis | 0-9999.99mm |
| 19 | Display resolution | 0.01mm |
| 20 | control accuracy | ±0.01mm |
| 21 | Programming angle | 10-180° |
| 22 | Bending speed | 0.1-20.0mm/s |
| 23 | Maximum bending steps | 25 |
Premium Product Components
E21 Controller
Name: E21 Controller
Original: China Estun
1) HD LCD display, with both Chinese and English language options.

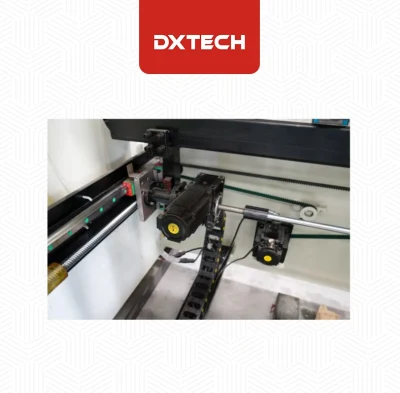

2) X, Y-axis intelligent positioning.
Name: E21 Controller
Original: China Estun
1) HD LCD display, with both Chinese and English language options.
2) X, Y-axis intelligent positioning.

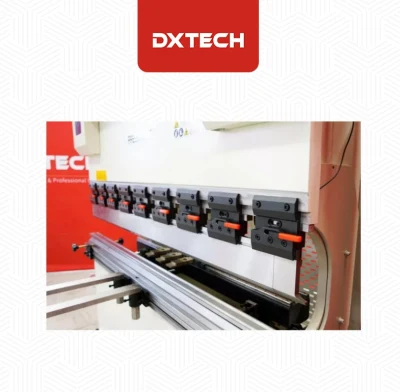

Quick-Release Clamp
Name: Quick-Release Clamps
Original: China
1) Quickly Fix, Release, and Change the Punch From the Press Brake.
2) Save your Working Time.
Name: Quick-Release Clamps
Original: China
1) Quickly Fix, Release, and Change the Punch From the Press Brake.
2) Save your Working Time.
Samples Display
Application
Why choose DXTECH?
FAQ 1. Do you have the CE document and other documents for customs clearance?
A: Yes, we have the Original. At first, we will show you and after shipment, we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.
Invoice/Sales contract for customs clearance.
2. Payment terms?
A: Alibaba trade assurance/TT/West Union/Paypal/LC/Cash and so on.
3. What's the max. cutting thickness?
3. What's the max. cutting thickness?
A: Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass, and other high-reflection sheet metal.
4. Which kind of materials can be processed on this machine?
A: Wood, MDF, stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials.
5. How long is the delivery time?
A: For standard machines, it will be 7-10 days; For non-standard machines and customized machines according to the client's specific requirements, it will be 15 to 30 days.
6. I don't know which one is suitable for me.
A: Just tell us the below information
1) Max work size: choose the most suitable model.
2) Materials and Cutting thickness: Power of laser generator.
3) Business industries: We sell a lot and give advice on this business line also, provide Door service if you need it.
4. Which kind of materials can be processed on this machine?
A: Wood, MDF, stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials.
5. How long is the delivery time?
A: For standard machines, it will be 7-10 days; For non-standard machines and customized machines according to the client's specific requirements, it will be 15 to 30 days.
6. I don't know which one is suitable for me.
A: Just tell us the below information
1) Max work size: choose the most suitable model.
2) Materials and Cutting thickness: Power of laser generator.
3) Business industries: We sell a lot and give advice on this business line also, provide Door service if you need it.
