High Quality Fiber Laser Iron Metal Sheet Laser Cutting

Discover high quality fiber laser iron metal sheet cutting at our factory. Expertly crafted for precision and durability. Contact us today.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
lx3015f
Cooling Mode
Water Cooling
Certification
CE, ISO, SGS
Laser Head Brand
Raytools
Guiderail Brand
Hiwin
Cutting Speed
1--30m/Min
Laser Type
Fiber Laser Cutting Machine
Control Software
Cyp Tube
Laser Source Brand
Raycus /Max/Ipg(Optional )
Servo Motor Brand
Yaskawa
Control System Brand
Cypcut
Machine Name
Metal Plate Fiber Laser Cutting Machine
Laser Wave Length
1064nm
Application Material
Metal Sheet Iron/CS/Ss/Aluminum/Copper
Transport Package
Standard Plywood Case
Specification
4800*2600*1860mm
Trademark
LXSHOW
Origin
China Shandong Jinan
Production Capacity
300sets/Year

Product Description

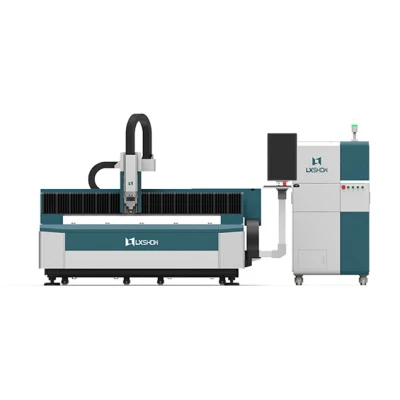

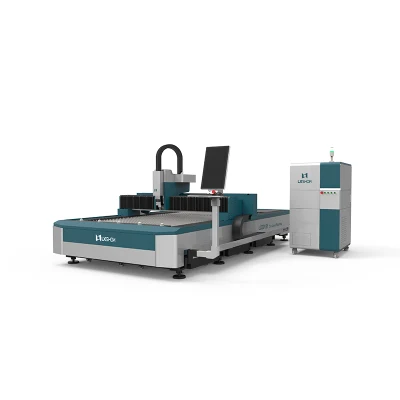

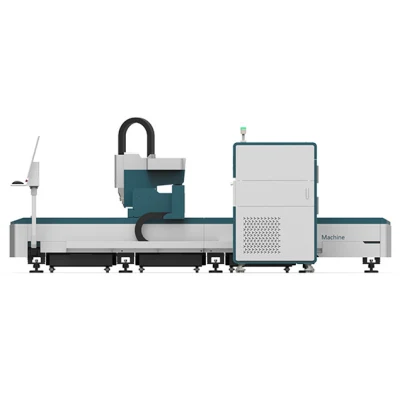

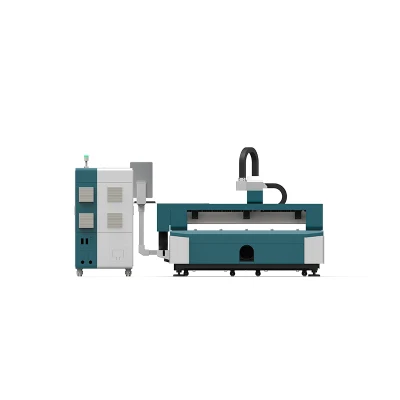

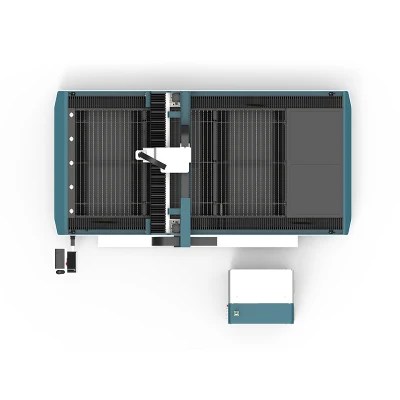

High Quality Fiber Laser Iron Metal Sheet Laser CuttingHigh Quality Fiber Laser Cutting Machine for Metal CutLX3015F is fast speed mild steel cnc fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.High Quality Fiber Laser Iron Metal Sheet Laser CuttingHigh Quality Fiber Laser Iron Metal Sheet Laser Cutting
High Quality Fiber Laser Iron Metal Sheet Laser Cutting

Our advantage
(1). High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.
(2). Gantry double-drive structure,with imported Germany rack & gear transmission system, which improves the production efficiency.
(3). High-performance cast aluminium guide rail, after infinite aalysis ,which accelerates the cicular arc cutting speed.
(4). High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
(5). The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
(6). The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
(7). It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
(8). Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys
High Quality Fiber Laser Iron Metal Sheet Laser Cutting High Quality Fiber Laser Iron Metal Sheet Laser Cutting High Quality Fiber Laser Iron Metal Sheet Laser Cutting
Equipment Specification
Model
LX3015F
LX4015F
LX4020F
LX6020F
Cutting Area
3000*1500mm
4000*1500mm
4000*2000mm
6000*2000mm
Laser source
Raycus OR other Brand
Raycus OR other Brand
Raycus OR other Brand
Raycus OR other Brand
Max Moving Speed
120m/min,Acc=1.2G
120m/min,Acc=1.2G
120m/min,Acc=1.2G
120m/min,Acc=1.2G
Position Accuracy
±0.03mm
±0.03mm
±0.03mm
±0.03mm
Reposition Accuracy
±0.02mm
±0.02mm
±0.02mm
±0.02mm
Power
380V 50/60Hz 50A
380V 50/60Hz 50A
380V 50/60Hz 50A
380V 50/60Hz 50A
Max Loading(KG)
700
1300
1900
1900
Max Loading(KG)
≤4000
≤5000
≤5500
≤600
* About Jinan Lingxiu Laser Equipment Co., Ltd. is established in July 2004, owns more than 500 square meters of researching and office
space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and
are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries
and areas,and supply OEM service for more than 30 manufactures.
High Quality Fiber Laser Iron Metal Sheet Laser Cutting

LX3015F Fiber Laser Cutting Machine Configurations advantage

1. Moved crossbeam with imported high precision racks and linear guide rail, transmission stable, working with high precision.
2.Machine tool, crossbeam and worktable adopt integral welding structure, machine tool, crossbeam and worktable adopt integral welding structure, in accordance with the standard large machine, to stress annealing after precision finishing and then for vibration aging treatment, it can completely eliminate the welding stress and processing stress, keep high-strength, high precision, and also keep the 20 years of normal use don't deformation.
3. X, Y and Z axis use imported Japan servo motor, high precision, high speed, large torque and large inertia, performance is stable and durable, ensure the high speed operation of the whole machine.
4. Based on Windows operating system, use professional Cypcut numerical control system for fiber laser cutting machine, integrated with laser cutting control special function module which is powerful with a good man-machine interface and easy to operate.

High Quality Fiber Laser Iron Metal Sheet Laser Cutting High Quality Fiber Laser Iron Metal Sheet Laser CuttingHigh Quality Fiber Laser Iron Metal Sheet Laser Cutting High Quality Fiber Laser Iron Metal Sheet Laser Cutting Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.

Q: Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.

Q: I don't know how to use after i receive Or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your
problems finished.We can also provide Door service if you need.

Q: I don't know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.

Q: If we need Lingxiu technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician's
business travelling ticket / room and board/ 100 USD per day.
