Basic Info.
Model NO.
YHL3-300T
Power Source
Hydraulic
Voltage
380V/220V Optional
Power
16.4kw
Weight
4.5ton
Function
Cold Forging Press
Usage
LED Heat Sink; Gear; Universal Joint
Surface
Hard Chrome Plated
Structure
H Frame
Motor System
Servo Motor
Main Components
Imported From Famous Brand
Application
Metal Sheet Stamping
Technology
Cold Forging
Type
Gantry Hydraulic Press
Certification
ISO9001, CE, SGS; BV
Transport Package
Wooden Box Package
Specification
300 Ton
Trademark
YIHUI
Origin
Guangdong, China(Mainland)
HS Code
8462919000
Production Capacity
35 Sets Per Month
Product Description

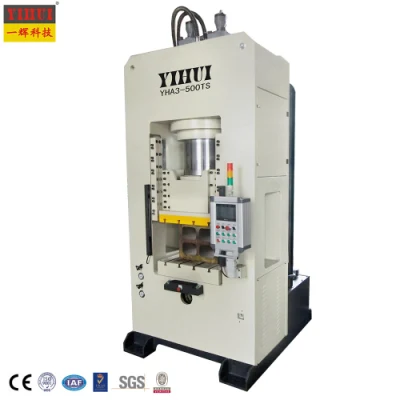

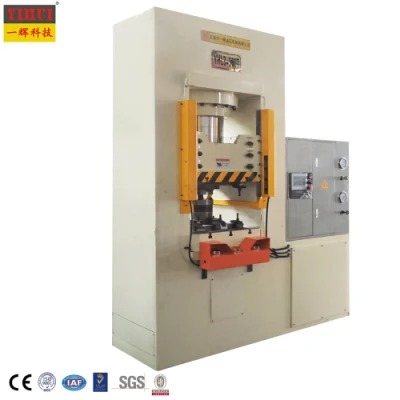

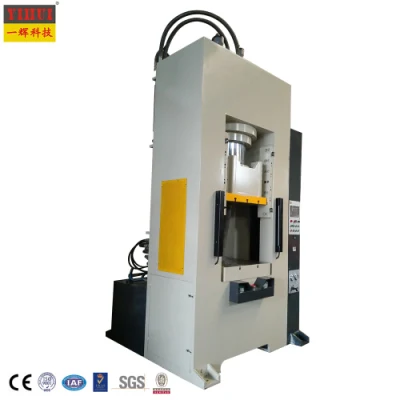

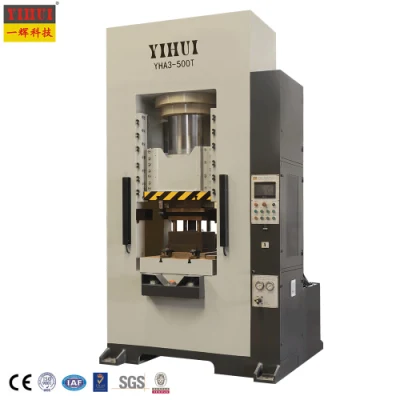

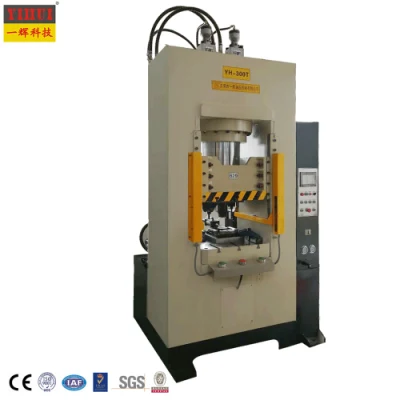

Energy Saving 500 Ton Hydraulic Cold Forging Press Machine With Sliding Table
Main Features
1. Reasonable design and good processing part make it low energry consumption.
2. Cylinder adopts to forge and grind, it have good reliability in state of high pressure.
3. Many kinds working speed improve the efficiency of production.
4. Run steady,low noise, with electric eye for worker safety.
5. Easy to set with machine by PLC and touch screen.
6. Pressure adjustable in big range for different need.
7. Frame and active beam have high guide precision, rigidity and hardwearing,
especially are suitable for pressing anisomerous parts.
2. Cylinder adopts to forge and grind, it have good reliability in state of high pressure.
3. Many kinds working speed improve the efficiency of production.
4. Run steady,low noise, with electric eye for worker safety.
5. Easy to set with machine by PLC and touch screen.
6. Pressure adjustable in big range for different need.
7. Frame and active beam have high guide precision, rigidity and hardwearing,
especially are suitable for pressing anisomerous parts.
Our factory can customize hydraulic press machine according to your needs.
| Item | Unit | YHL3-300ton | YHL3-500ton | YHL3-800ton | |
| Nominal Capacity | kN | 3000 | 5000 | 8000 | |
| Max. Working Pressure | Mpa | 24 | 25 | 24 | |
| Main Cylinder Stroke | kN | 3000 | 5000 | 8000 | |
| Max. Stroke Of Ram | mm | 400 | 400 | 500 | |
| Max. Open Height | mm | 700 | 750 | 900 | |
| Upper Ejection Cylinder Force | ton | 100 | 150 | 150 | |
| Stroke of Upper Ejection Cylinder | mm | 50 | 50 | 50 | |
| Lower Ejection Cylinder Force | ton | 100 | 150 | 150 | |
| Stroke of Lower Ejection Cylinder | mm | 100 | 100 | 100 | |
| Upper Cushion Cylinder Force | ton | 50 | 50 | 50 | |
| Stroke of Upper Cushion Cylinder | mm | 100 | 100 | 200 | |
| Lower Cushion Cylinder Force | ton | 50 | 50 | 50 | |
Speed Of Ram | Down No Load | mm/s | 260 | 250 | 200 |
| Pressing | mm/s | 2~15 | 2~15 | 2~10 | |
| Return | mm/s | 230 | 230 | 190 | |
| Effective Area Of Working Table | RL(column inside) | mm | 550 | 750 | 850 |
| FB(edge) | mm | 650 | 800 | 950 | |
| Motor Power | kW | 16.4 | 24.5 | 31 | |
↓↓↓↓↓More details and your requirements please contact me any time↓↓↓↓↓
YIHUI Hydraulic press with servo system,can bring you 10 kinds advantages as below:
1.Can avoid the oil leakage. Because using Servo motor, the oil temperature can be lower.
2.English and customer country local language, bilingual operation interface, easy to operate.
3.Can save 50% - 70% electricity energy.
4.Parameters and Speed can be adjusted on the touch screen, easy to operate.
(Machine without servo system, speed can not been adjusted.)
5.Can be 3 to 5 years longer service life than the common machine.
It means,if common machine can service for 10 years, then machine with servo, can use 15 years.
6.Ensure safety and easy to know error,easy to do after service.
Because of Automatic alarm and auto troubleshooting system.
7.Very easy to change mold, shorter time of changing mold.
Because it have memory function,if use the original mold, do not need to adjust parameter again,
8.Very quiet , do not have noise.
9.Much stable than common machine.
10.Much high precision than common machine.
2.English and customer country local language, bilingual operation interface, easy to operate.
3.Can save 50% - 70% electricity energy.
4.Parameters and Speed can be adjusted on the touch screen, easy to operate.
(Machine without servo system, speed can not been adjusted.)
5.Can be 3 to 5 years longer service life than the common machine.
It means,if common machine can service for 10 years, then machine with servo, can use 15 years.
6.Ensure safety and easy to know error,easy to do after service.
Because of Automatic alarm and auto troubleshooting system.
7.Very easy to change mold, shorter time of changing mold.
Because it have memory function,if use the original mold, do not need to adjust parameter again,
8.Very quiet , do not have noise.
9.Much stable than common machine.
10.Much high precision than common machine.
