CNC Plate Bending CNC Hydraulic Iron Worker Machine Punching Press Machine
Get high-quality CNC Plate Bending, CNC Hydraulic Iron Worker, and Punching Press Machines from our factory. We are the leading manufacturer of industrial machinery.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
PPD103B
Video Outgoing-Inspection
Provided
Core Components
PLC, Other
Max Size of Work Piece L*W(mm)
1500*800
Max. Punching Diameter (mm)
26
Max. Drilling Diameter (mm)
50
Type
Hydraulic
Certification
CCC, CE
Transport Package
Wood Box
Specification
customized
Trademark
NEUTRON TECH
Origin
Shandong, China
HS Code
8465920000
Production Capacity
100 Piece/Pieces Per Month

Product Description

CNC Plate Bending CNC Hydraulic Iron Worker Machine Punching Press Machine
CNC Plate Bending CNC Hydraulic Iron Worker Machine Punching Press Machine
Product parameters
1.Max. punching force:1000kN
2.Max. size of workpiece: 775×1500mm
3.Thickness of workpiece:5 ~ 25mm
4.Max. punching diameter :  φ25.5mm(16Mn,20mm thickness Q235, 25mm thickness)
(we only provide the die of 16mm thickness for test run. If you want the die  of 20mm,25mm thickness for test run,  you must provide the female die yourself)
5.No. of die station:   3(one of them can be equipped with stamping die)
6.Min. distance between hole and plate edge
Punching:    25mm
Drilling:     the distance depends on the hole diameter
7.Max. marking force:               800kN
8.No. and size of character:           10 (14×10mm)
9.Drilling diameter (high-speed steel twist drill): φ16 ~ φ50mm
10.Rotation speed of drilling spindle (stepless speed variation):120~560r/min,    5.5kW
11.Max. stroke of drilling spindle:      180mm
12.Feeding speed (hydraulic stepless adjustment) 20~200mm/min
13.The processing precision:
It can fit the stipulations of first-rate products in < The Classifying Standard of Steel Tower of the Transmit Electricity Line >. The specific numerical value:
14.The space between arbitrary holes on the joint plate: longitudinal: ±0.5mm transverse :  ±0.5mm
15.Node plate: space between any two group holes : ±1.0mm, the space of the hole to the side of the steel plate: ±1.0mm
16.The vertical degree, "t" is the thickness of plate ≤ 0.03t and ≤ 2mm
17.Motor power of hydraulic pump: 15kW
18.Power of servo motor (X and Y axes):  2×2kW
19.The compressed air force ×discharging quantity: 0.5MPa×0.1m3/mi
n
20.Overall dimension  (length × width ×height):  3100×2988×2720mm
21.weight :Approx.6500kg
22.The motor of X and Y axes are world famous brand AC servo motor. The main electric controlling components (PLC and CNC orientation system, encoder and switch without touching), hydraulic components, pneumatic valve (electromagnetic valve, overflow valve, and unloading valve) and cylinder are all world famous brand.
23.Working environment:
Working temperature: 0ºC~ 40ºC
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ±10%
Frequency: 50 Hz

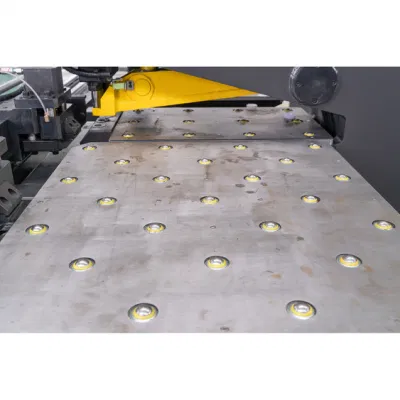

Finished Workpiece
CNC Plate Bending CNC Hydraulic Iron Worker Machine Punching Press Machine
Product details
CNC Plate Bending CNC Hydraulic Iron Worker Machine Punching Press Machine
Certifications
CNC Plate Bending CNC Hydraulic Iron Worker Machine Punching Press Machine

Company information
Shandong neutron tech intelligent equipment co. LTDLocated in jinan lixia district, is a new trading company.Mainly engaged in intelligent equipment and related accessories development, sales, installation, maintenance and import and export business.Its products are widely used in iron tower, steel structure, automobile and other fields, customer groups throughout the world more than 40 countries.The company has experienced sales staff, technical support and after-sales team, to provide customers with quality, accurate products and professional, efficient service.

Packaging & Shipping
CNC Plate Bending CNC Hydraulic Iron Worker Machine Punching Press Machine

FAQ
Q1. Are you a Manufacturer or a trading company?
A1.We are the manufacture, integrating with design, machining and assembling for angle machine.

Q2. Do you have stock product ready to deliver?
A2. In order to satisfy with the customer for fast delivery, we have certain amount of machines in stock, you can check the machine on LIVE-DEMONSTRATION at any time.

Q3. How do you deliver the finished products?
A3. The machine is mostly delivery by sea, rail way or road for some exception. For some urgent part or shipping document we delivered by air or Express like TNT, FEDEX,DHL,UPS,EMS, Etc.
