Basic Info.
Model NO.
yha6-800T
Application
Mental Fine Blanking, Cold Forging, Extrusion
Force Capacity
800t
Oil
Hydraulic Oil
Servo Motor
Phase, Italy
Pressure Sensor
Huba, Switzerland
PLC
Mitsubishi, Japan
Magnetic Valve
Rexroth, Bosch, Germany
Main Electronic Component
Schneider, France
Oil Pump
Eckerle, Germany
Oil Seal
Nok, Japan
Linear Encoder
Mtt, Taiwan
Voltage
3 Phase 220V/380V/Customized
Term
Manufacturer
Type
Four-Column Hydraulic Press
Certification
ISO9001, CE, SGS, BV
Transport Package
Standard Export Package
Specification
Accordingy
Trademark
Yihui
Origin
Guangdong, China (Mainland)
HS Code
846291900
Production Capacity
500 Sets Per Year
Product Description
Product Description

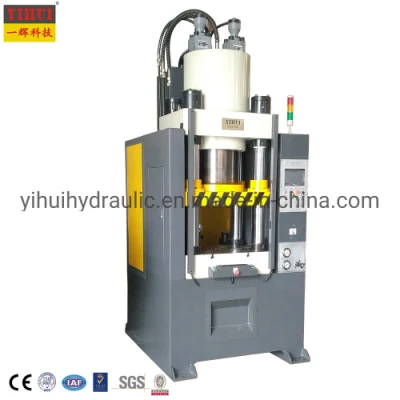

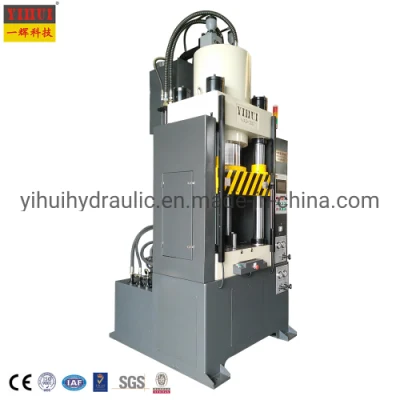

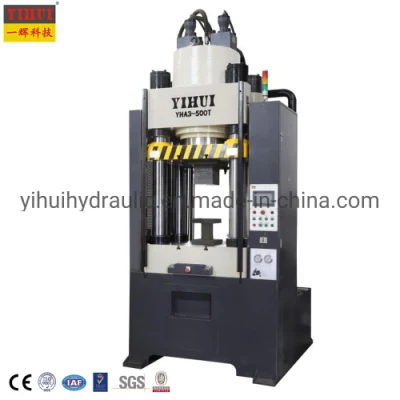

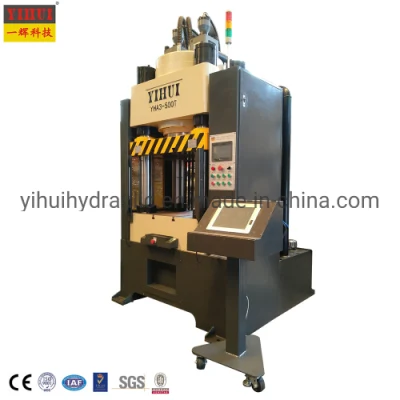

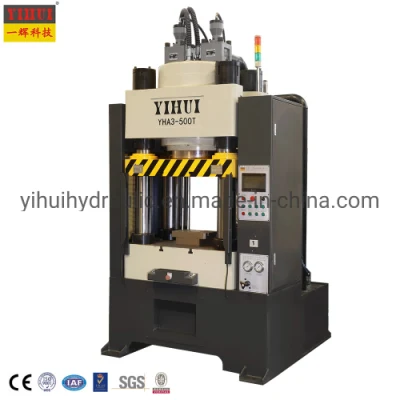

800 ton sheet mental stamping automatic fine blanking hydraulic press
800 ton sheet mental stamping automatic fine blanking hydraulic press
We can provide total solutions, including machines, molds, product processing technology, automated production lines.
Machine parts
Machine parts
Product Application
1) Pressing, Forging, Stamping, Powder Compacting, Compressing, Moulding and so on.
2) Cold extrusion molding and stamping for Auto parts, Gears, Eye glass, Cluth, Aluminum case , CV carden joint,
Terminal Lugs, Sleeves, LED radiator, cellphone case, and hardware tools, etc.
3) Molding and stamping for metallic and non-metallic.
Components Detail
Packing & Delivery
Our company
Customer shows
Exhibitions
Our advantages
1. Use servo control system with very good quality components.
2. Custom-made is available according to your detailed requirement.
3. We are able to provide whole production line, including molds, technical support and other equipments from
other suppliers.
Certificate
Feedbacks from customer
FAQ
Q1: Are you trade company or manufacturer?
Answer: We are an enterprise with sales, R&D, manufacturing and patent.
Q2: Whether to provide quality assurance and complete after-sales support? Or say, does engineers available to
service overseas?
Answer: Yes!
Warranty period of Our hydraulic press machine is 12 months, if necessary,we support the site installation,
commissioning, technical guidance,and after-sales maintenance support.
Q3:How can I know what kinds of the machine and which size suits my needs best?
Answer: Before we have a deeper communication on the target machine, the drawings, material, pics, size and production
of the products you are willing to make are necessary.
Q4:Does customized is acceptable?
Answer: Yes, we accept customized when necessary.
Q5:Why choose us ?
Answer: 1.Our factory has specialized in independent development and producing hydraulic press for 20 years.
So the product is stable and with high quality.
2. About machine body, we use bending structure which is much stronger than the common welding structure .
3.About oil pipe, we use Clip-on structure which is tighter than common welding structure and can prevent oil from leakage.
4. We take integrated oil manifold block which is much easier to check and repair machine.
5.The main components are imported from Japan and Taiwan . So the quality of our machine is close to Japan
while the unit price is lower than Japan.
6.Our factory can offer full set line service, such as the mould,process technology, and other relative machines.
2) Cold extrusion molding and stamping for Auto parts, Gears, Eye glass, Cluth, Aluminum case , CV carden joint,
Terminal Lugs, Sleeves, LED radiator, cellphone case, and hardware tools, etc.
3) Molding and stamping for metallic and non-metallic.
Technical Characteristics
1) Using built-in high speed cylinder, has fast falling speed and high production efficiency.
2) Four columns are made of high-strength alloy steel with hard chrome plated surface and good abrasion resistance.
3) Pressure, stroke and pressurizing time can be adjusted according to processing requirement.
4) Optional configuration: protective cover, anti-drop device, blowing chip removal device, LED lighting and infrared grating, etc
2) Four columns are made of high-strength alloy steel with hard chrome plated surface and good abrasion resistance.
3) Pressure, stroke and pressurizing time can be adjusted according to processing requirement.
4) Optional configuration: protective cover, anti-drop device, blowing chip removal device, LED lighting and infrared grating, etc
| Item | Unit | Specifications | |||||
| YHA6-300T | YHA6-500T | YHA6-800T | YHA6-1000T | ||||
| Nominal Force | kN | 3000 | 5000 | 8000 | 10000 | ||
| Max.Working Pressure | Mpa | 24 | 25 | 24 | 24 | ||
| Master Cylinder Nominal Force | kN | 3000 | 5000 | 8000 | 10000 | ||
| Max.Stroke of Ram | mm | 400 | 400 | 500 | 500 | ||
| Daylight (Max.Open Height) | mm | 700 | 750 | 900 | 1200 | ||
| Upper Ejection Cylinder Force | Ton | 100 | 150 | 150 | 150 | ||
| Stroke of Upper Ejection Cylinder | mm | 50 | 50 | 50 | 50 | ||
| Lower Ejection Cylinder Force | Ton | 100 | 150 | 150 | 150 | ||
| Stroke of lower Ejection Cylinder | mm | 100 | 100 | 100 | 100 | ||
| Upper Cushion Cylinder Force | Ton | 100 | 100 | 200 | 200 | ||
| Stroke of Upper Cushion Cylinder | mm | 50 | 50 | 50 | 50 | ||
| Lower Cushion Cylinder Force | Ton | 100 | 100 | 200 | 200 | ||
| Stroke of lower Cushion Cylinder | mm | 50 | 50 | 50 | 50 | ||
| Speed of Ram | Down No Load | mm/s | 260 | 250 | 200 | 200 | |
| Pressing | mm/s | 2~15 | 2~15 | 2~10 | 2~10 | ||
| Return | mm/s | 230 | 230 | 190 | 190 | ||
| Effective Area of Working Table | RL(Inside Column) | mm | 550 | 750 | 850 | 1050 | |
| FB(Edge) | mm | 650 | 800 | 950 | 1100 | ||
| Servo Motor Power | kW | 16.4 | 24.5 | 31 | 49.6 | ||
