- Overview
- Products Description
- Details Images
- Production Process
- Packing & Delivery
- Company Profile
Basic Info.
Showroom Location
Italy, France, Germany
Backgauge Travel (mm)
20 - 800 mm
Warranty of Core Components
1 Year
Power (Kw)
7.5 Kw
Blade Length (mm)
3300 mm
Video Outgoing-Inspection
Provided
Max. Cutting Width (mm)
3200
Key Selling Points
Automatic
Core Components
Engine, Motor, Pump
Shearing Angle
0.5-2.5
Throat Depth (mm)
100 mm
Machinery Test Report
Provided
Transport Package
Plastic Film Package
Trademark
AHYW
Origin
Anhui, China
Production Capacity
300 Set/Sets Per Month
Product Description
AHYW YWGS SERIES CNC GUILLOTINE SHEARING MACHINE
The Guillotine shear machine makes heavy-duty shear affordable. Frame and cutting beam offer maximum rigidity and resistance to deflection and torsional force for accurate shearing of mild steel up to 30mm. This guillotine shear features four cutting edges that can be turned three times before grinding for increased production life. Cost-efficiently manufactured. Our guillotine shear machine fit your needs and your budget.
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00FtflmICaaQGN/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
Features:
* The machine welding is made by welding plant and welding robots.
* After the welding,we make stress relief process by vibration system.
* After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy.
* All reference surfaces and connection holes are machined.
* After the welding,we make stress relief process by vibration system.
* After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy.
* All reference surfaces and connection holes are machined.
Model | YWGS-6*3200 |
Shear Capacity(mm) | 6 |
Shear Length(mm) | 3200 |
Backgauge Range(mm) | 800 |
Main power(KW) | 7.5 |
Dimension(mm) | 3800*1600*1900 |
Weight (approx.)(KG) | 5700 |
Working Environment:
Power supply: three phase AC 380V 50Hz / customized
Ambient temperature: 0 45
Relative humidity: 20% 80%
Advantages
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00FtGhAoByEaYN/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
Application Area
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00yaRidZeGbtUN/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00NTfimdMhEtGO/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00AaRWmfMSCTGN/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00mTfiJHecCERy/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
Building & Decoration Electricity & Appliances Automobile & Shipbuilding Aerospace
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00AtfWwoMaHTGF/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)

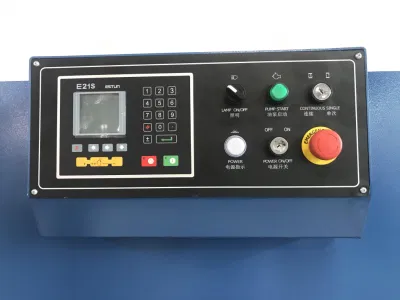

ESTUN E21S Controller
HD LCD display, with both Chinese and English language options, a display programming parameters, faster and more convenient programming
Roller Feeding Workbench
Roller on the workbench can reduce friction and protect the workpiece surface; delicate design is convenient for cutting petty materials by hand.
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00AafidjMLnQYF/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00JQRlmAeBLTYF/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00EaflJRChqtUA/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00QtGiwLvZaEYd/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
Safety Fence
Protective guards on each side can protect the operator's safety, and can clearly see the shearing situation, which is safe and convenient.

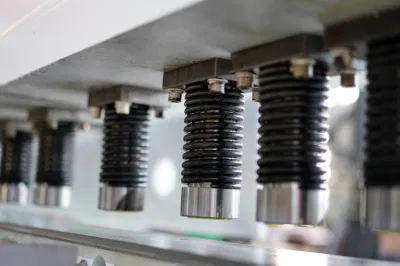

Presser
The pressing device adopts integral circuit and independent parallel pressing cylinder. When the sheet metal is uneven, it can be freely expanded and compressed on the sheet metal, and the pressing force can also be adjusted with the sheet material and thickness, without damage to the plate surface.
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00QaUVJoetqTYm/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00EtYlwZvIaTfA/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)

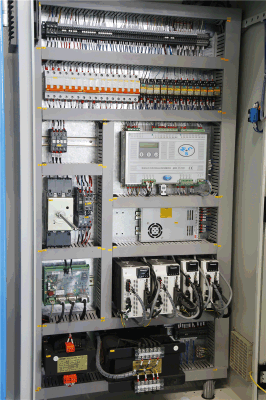

Schneider Electrics
High quality electric parts are adopted to ensure machine stability, which can perform well even when the electricity is unstable. The users can easily get the replacement anywhere worldwide.
SUNNY Pump
American world famous brand for hydraulic pump performs well and provides great power for the whole hydraulic system
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00aTUWmAeIgtYw/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00RaGhmYBcsQfw/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
HIWIN Ball Screw & Linear Guide
High performance decelerating motor, precision HIWIN ball screw and dual linear guide rail are adopted for CNC rear stop device, and the transmission positioning accuracy is less than ±0.1mm.
Rear Pneumatic Sheet Support
Rear pneumatic support system provides support and allows more precise cuts by keeping the material lifted throughout the cut, avoiding hanging down the wide and thin sheets.
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00faUldHCJHtYw/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00ftRidbMGsEUm/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00RafhmSCdZEGw/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
Packing | | |
Size | (L) * (W) * (H) | |
Weight | T | |
Details | The normal package is water proof plastic package, the optional ply wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.If container is too tigher, we will use pe film for packing or pack it according to customers special request. |
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00RTYWAJvIHQGw/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
Delivery | | |
Means | by sea, by rail | |
Container | 20' GP 40 'GP 40' HQ or OT RT | |
Details | According to the size and weight of machines, we will provide our customers with optimized shipping solution. |
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00zEfhmGvKaTYJ/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
Anhui Yawei Machine Tool Manufacturing Co.,ltd. was founded in 2005, the registered capital is 81.88 million, with 120 employee, floor space about 40000 square meters, the location is close to Nanjing Airport and near to Shanghai city.
We specializes in exporting CNC Hydraulic Press Brake Machine, Hydraulic Shearing machine, CNC Fiber Laser Cutting Machine, CNC Robotic Arm, with over 120 different types. Our machines, which adopt advanced technology, have a high quality. The main electrical parts, hydraulic parts and the instrument of our machines are adopted the best products made by the famous manufacturer in the world. We have passed ISO9001 quality system certification and the European Union CE certification, etc., at the same time established a perfect market service system and the system of the mature. Based on the good quality and top technology on our machines, we sell well in various countries and regions over 90 in the world such as U.S.A, Canada, Europe, South American, Middle East, and Southeast Asia market. The history of our independent Import and Export experience is more than 12 years. We also make OEM machines for our European Agent, all of the configuration on the machines will according European standard and approved by customer satisfied. Advanced technologies, scientific management, wonderful products and approving service are kept on which we aim at. We want to cooperate with you to promote our sales and build a long term cooperation with you for future business. Best wishes for you and hope a better tomorrow for all of us!
Facilities & Equipment
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00pQRlmPMEqaUw/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
Customer Photos
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00uTUVAcMFbtfw/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
Certification
![QC11K Series CNC 6X3200mm Hydraulic Pressure Guillotine Metal Sheet Shearing Machine](http://img6.grofrom.com/www.machinemizlygroup.com/226f3j00raUWdKMYaTfJ/QC11K-Series-CNC-6X3200mm-Hydraulic-Pressure-Guillotine-Metal-Sheet-Shearing-Machine.webp)
We warmly invite you to visit our factory!
